#include <KTProcessor.hh>

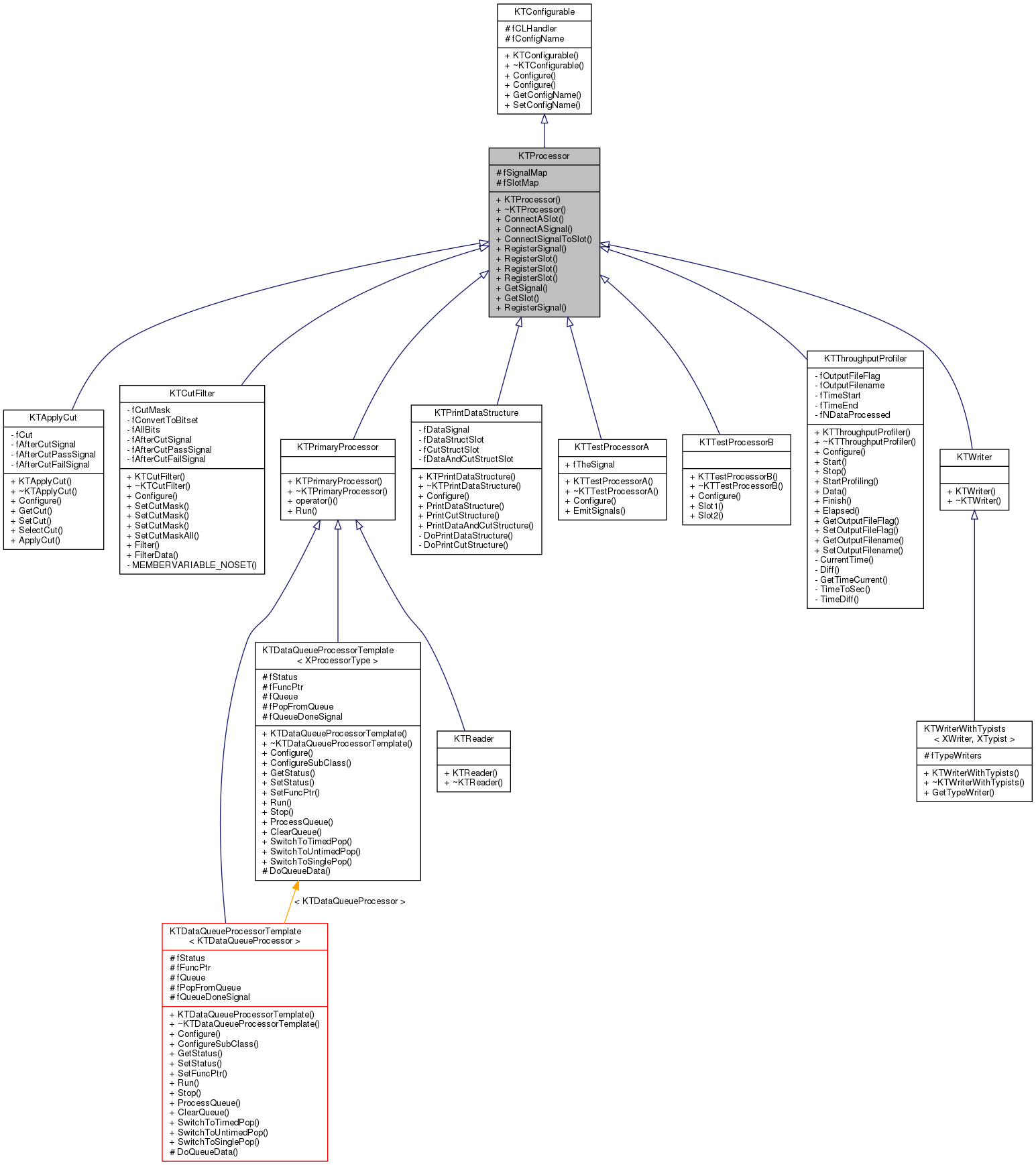

Inheritance diagram for KTProcessor:
Public Member Functions | |
| KTProcessor (const std::string &name="default-proc-name") | |
| virtual | ~KTProcessor () |
| void | ConnectASlot (const std::string &signalName, KTProcessor *processor, const std::string &slotName, int groupNum=-1) |
| void | ConnectASignal (KTProcessor *processor, const std::string &signalName, const std::string &slotName, int groupNum=-1) |
| void | ConnectSignalToSlot (KTSignalWrapper *signal, KTSlotWrapper *slot, int groupNum=-1) |
| template<class XProcessor > | |
| void | RegisterSignal (std::string name, XProcessor *signalPtr) |
| template<class XTarget , typename XReturn > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)()) |
| template<class XTarget , typename XReturn , typename XArg1 > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)(XArg1)) |
| template<class XTarget , typename XReturn , typename XArg1 , typename XArg2 > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)(XArg1, XArg2)) |
| KTSignalWrapper * | GetSignal (const std::string &name) |
| KTSlotWrapper * | GetSlot (const std::string &name) |
| template<typename XSignalSig > | |
| void | RegisterSignal (std::string name, XSignalSig *signalPtr) |
 Public Member Functions inherited from KTConfigurable | |
| KTConfigurable (const std::string &name="default-name") | |
| virtual | ~KTConfigurable () |
| virtual bool | Configure (const scarab::param_node &node)=0 |
| Should perform parameter store and command-line configurations. More... | |
| bool | Configure (const std::string &config) |
| Implement the option for calling Configure without passing a parameter store node. More... | |
| const std::string & | GetConfigName () const |
| void | SetConfigName (const std::string &name) |
Protected Types | |
| typedef std::map< std::string, KTSignalWrapper *> | SignalMap |
| typedef SignalMap::iterator | SigMapIt |
| typedef SignalMap::value_type | SigMapVal |
| typedef std::map< std::string, KTSlotWrapper *> | SlotMap |
| typedef SlotMap::iterator | SlotMapIt |
| typedef SlotMap::value_type | SlotMapVal |
Protected Attributes | |
| SignalMap | fSignalMap |
| SlotMap | fSlotMap |
| Protected Attributes inherited from KTConfigurable | |
| KTCommandLineHandler * | fCLHandler |
| std::string | fConfigName |
Detailed Description
Definition at line 40 of file KTProcessor.hh.
Member Typedef Documentation
◆ SigMapIt
|
protected |
Definition at line 44 of file KTProcessor.hh.
◆ SigMapVal
|
protected |
Definition at line 45 of file KTProcessor.hh.
◆ SignalMap
|
protected |
Definition at line 43 of file KTProcessor.hh.
◆ SlotMap
|
protected |
Definition at line 47 of file KTProcessor.hh.
◆ SlotMapIt
|
protected |
Definition at line 48 of file KTProcessor.hh.
◆ SlotMapVal
|
protected |
Definition at line 49 of file KTProcessor.hh.
Constructor & Destructor Documentation
◆ KTProcessor()
| KTProcessor | ( | const std::string & | name = "default-proc-name" | ) |
Definition at line 27 of file KTProcessor.cc.
◆ ~KTProcessor()
|
virtual |
Definition at line 34 of file KTProcessor.cc.
Member Function Documentation
◆ ConnectASignal()
| void ConnectASignal | ( | KTProcessor * | processor, |
| const std::string & | signalName, | ||
| const std::string & | slotName, | ||
| int | groupNum = -1 |
||
| ) |
Definition at line 70 of file KTProcessor.cc.
◆ ConnectASlot()
| void ConnectASlot | ( | const std::string & | signalName, |
| KTProcessor * | processor, | ||
| const std::string & | slotName, | ||
| int | groupNum = -1 |
||
| ) |
Definition at line 47 of file KTProcessor.cc.
◆ ConnectSignalToSlot()
| void ConnectSignalToSlot | ( | KTSignalWrapper * | signal, |
| KTSlotWrapper * | slot, | ||
| int | groupNum = -1 |
||
| ) |
Definition at line 91 of file KTProcessor.cc.
◆ GetSignal()
| KTSignalWrapper * GetSignal | ( | const std::string & | name | ) |
Definition at line 107 of file KTProcessor.cc.
◆ GetSlot()
| KTSlotWrapper * GetSlot | ( | const std::string & | name | ) |
Definition at line 117 of file KTProcessor.cc.
◆ RegisterSignal() [1/2]
| void RegisterSignal | ( | std::string | name, |
| XProcessor * | signalPtr | ||
| ) |
◆ RegisterSignal() [2/2]
| void RegisterSignal | ( | std::string | name, |
| XSignalSig * | signalPtr | ||
| ) |
Definition at line 87 of file KTProcessor.hh.
◆ RegisterSlot() [1/3]
| void RegisterSlot | ( | std::string | name, |
| XTarget * | target, | ||
| XReturn(XTarget::*)() | funcPtr | ||
| ) |
Definition at line 96 of file KTProcessor.hh.
◆ RegisterSlot() [2/3]
| void RegisterSlot | ( | std::string | name, |
| XTarget * | target, | ||
| XReturn(XTarget::*)(XArg1) | funcPtr | ||
| ) |
Definition at line 110 of file KTProcessor.hh.
◆ RegisterSlot() [3/3]
| void RegisterSlot | ( | std::string | name, |
| XTarget * | target, | ||
| XReturn(XTarget::*)(XArg1, XArg2) | funcPtr | ||
| ) |
Definition at line 124 of file KTProcessor.hh.
Member Data Documentation
◆ fSignalMap
|
protected |
Definition at line 79 of file KTProcessor.hh.
◆ fSlotMap
|
protected |
Definition at line 81 of file KTProcessor.hh.
The documentation for this class was generated from the following files:
