Applies a cut to data. More...
#include <KTApplyCut.hh>
Public Member Functions | |
| KTApplyCut (const std::string &name="apply-cut") | |
| virtual | ~KTApplyCut () |
| bool | Configure (const scarab::param_node &node) |
| Should perform parameter store and command-line configurations. More... | |
| KTCut * | GetCut () const |
| void | SetCut (KTCut *cut) |
| bool | SelectCut (const std::string &cutName) |
| void | ApplyCut (KTDataPtr) |

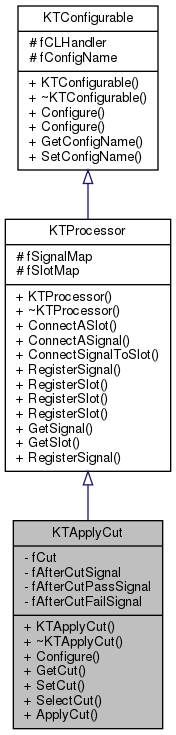

 Public Member Functions inherited from KTProcessor | |
| KTProcessor (const std::string &name="default-proc-name") | |
| virtual | ~KTProcessor () |
| void | ConnectASlot (const std::string &signalName, KTProcessor *processor, const std::string &slotName, int groupNum=-1) |
| void | ConnectASignal (KTProcessor *processor, const std::string &signalName, const std::string &slotName, int groupNum=-1) |
| void | ConnectSignalToSlot (KTSignalWrapper *signal, KTSlotWrapper *slot, int groupNum=-1) |
| template<class XProcessor > | |
| void | RegisterSignal (std::string name, XProcessor *signalPtr) |
| template<class XTarget , typename XReturn > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)()) |
| template<class XTarget , typename XReturn , typename XArg1 > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)(XArg1)) |
| template<class XTarget , typename XReturn , typename XArg1 , typename XArg2 > | |
| void | RegisterSlot (std::string name, XTarget *target, XReturn(XTarget::*funcPtr)(XArg1, XArg2)) |
| KTSignalWrapper * | GetSignal (const std::string &name) |
| KTSlotWrapper * | GetSlot (const std::string &name) |
| template<typename XSignalSig > | |
| void | RegisterSignal (std::string name, XSignalSig *signalPtr) |
| Public Member Functions inherited from KTConfigurable | |
| KTConfigurable (const std::string &name="default-name") | |
| virtual | ~KTConfigurable () |
| bool | Configure (const std::string &config) |
| Implement the option for calling Configure without passing a parameter store node. More... | |
| const std::string & | GetConfigName () const |
| void | SetConfigName (const std::string &name) |
Private Attributes | |
| KTCut * | fCut |
| KTSignalData | fAfterCutSignal |
| KTSignalData | fAfterCutPassSignal |
| KTSignalData | fAfterCutFailSignal |
Additional Inherited Members | |
| Protected Types inherited from KTProcessor | |
| typedef std::map< std::string, KTSignalWrapper *> | SignalMap |
| typedef SignalMap::iterator | SigMapIt |
| typedef SignalMap::value_type | SigMapVal |
| typedef std::map< std::string, KTSlotWrapper *> | SlotMap |
| typedef SlotMap::iterator | SlotMapIt |
| typedef SlotMap::value_type | SlotMapVal |
| Protected Attributes inherited from KTProcessor | |
| SignalMap | fSignalMap |
| SlotMap | fSlotMap |
| Protected Attributes inherited from KTConfigurable | |
| KTCommandLineHandler * | fCLHandler |
| std::string | fConfigName |
Detailed Description
Applies a cut to data.
KTApplyCut applies a cut to data – the type of cut and its parameters are specified at runtime from the set of cuts registered.
Only one cut can be applied by a given instance of KTApplyCut. To apply more than one cut, add another instance.
Interpretation of boolean returned by KTCut::Apply
- TRUE means the cut was failed
- FALSE means the cut was passed
Configuration name: "apply-cut"
Available configuration values:
- "[cut name]": subtree – specifies the cut to be used; parent node for the cut configuration
Slots:
- "apply": void (KTDataPtr) – Applies the cut to the received data; Requirements are set by the cut; No data is added.
Signals:
- "all": void (KTDataPtr) – Emitted upon application of the cut regardless of cut result.
- "pass": void (KTDataPtr) – Emitted upon application of the cut if the cut passed.
- "fail": void (KTDataPtr) – Emitted upon application of the cut if the cut failed.
Definition at line 54 of file KTApplyCut.hh.
Constructor & Destructor Documentation
◆ KTApplyCut()
| KTApplyCut | ( | const std::string & | name = "apply-cut" | ) |
Definition at line 21 of file KTApplyCut.cc.
◆ ~KTApplyCut()
|
virtual |
Definition at line 31 of file KTApplyCut.cc.
Member Function Documentation
◆ ApplyCut()
| void ApplyCut | ( | KTDataPtr | dataPtr | ) |
Definition at line 85 of file KTApplyCut.cc.
◆ Configure()
|
virtual |
Should perform parameter store and command-line configurations.
Implements KTConfigurable.
Definition at line 36 of file KTApplyCut.cc.
◆ GetCut()
|
inline |
Definition at line 91 of file KTApplyCut.hh.
◆ SelectCut()
| bool SelectCut | ( | const std::string & | cutName | ) |
Definition at line 72 of file KTApplyCut.cc.
◆ SetCut()
| void SetCut | ( | KTCut * | cut | ) |
Definition at line 65 of file KTApplyCut.cc.
Member Data Documentation
◆ fAfterCutFailSignal
|
private |
Definition at line 80 of file KTApplyCut.hh.
◆ fAfterCutPassSignal
|
private |
Definition at line 79 of file KTApplyCut.hh.
◆ fAfterCutSignal
|
private |
Definition at line 78 of file KTApplyCut.hh.
◆ fCut
|
private |
Definition at line 67 of file KTApplyCut.hh.
The documentation for this class was generated from the following files:
